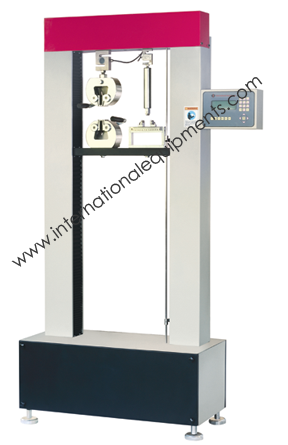

Universal Testing Machine to determine properties of tensile and elongation as per ASTM D – 638/ D 882, flexural as per ASTM D - 790 and compression as per ASTM D – 695 of unreinforced and reinforced plastics.
Load capacity : up to 1000 kg*.
No. of load cell : Two.
Cross Travel : up to 1000 mm*.
Horizontal day light : 450mm*.
Speed : Variable between 2mm/minute
Paint : Powder coated.
Power : 230 Volts, 50Hz, single phase.
Direct display and printout through
Numeric test report consisting values of Peak
load, Break load, Elongation at peak load,
Elongation at break load, Tensile strength at
peak load, Tensile strength at break load, %
elongation at peak load, % elongation at break
load could be viewed on the micro controller and
printout could be obtained by directly attaching
a dot matrix printer to the equipment.
Graphic display and printout through PC:
In addition to the above reports, further values
like Young’s modulus, Yield load, Yield stress,
Flexural stress, Flexural modulus and Load Vs
Elongation graph could be obtained by attaching
a printer to the PC. Similarly average value and
standard deviation could be obtained by merging
