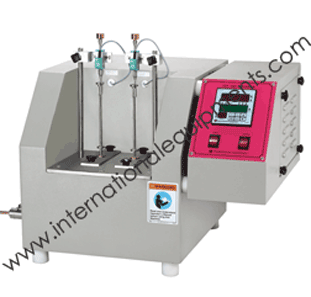

VSP / HDT Apparatus
|
|
|
Computerised VSP / HDT Apparatus
as per ASTM D – 1525 and ASTM D - 648 to
determine vicat softening temperature and heat
deflection temperature of plastics.
Temperature range : From ambient to 300ºC.
No of stations : Two.
Material of construction : Inner bath: S.S
Outer body: M.S
Rate of heating : 120ºC / hour and 50ºC / hour.
Sensor : Range upto 10mm with resolution of
0.01mm.
Weights : A set of weights ranging from 5grams
to 2000grams would be supplied for incremental
loads.
Paint : Powder coated.
Power : 230 Volts, 50Hz, single phase.
 |
|
|
Graphic display and printout through PC:
Penetration/Deflection Vs Temperature graph and
numeric reports consisting values of vicat
softening temperature and heat deflection
temperature could be obtained by attaching a
printer to the PC.
|
|
|
Analogue VSP / HDT apparatus
as per ASTM D – 1525 and ASTM D
– 648 to determine vicat softening temperature
and heat deflection temperature of plastics.
Temperature range : From ambient to 300ºC.
No of stations : Two.
Material of construction : Inner bath: S.S
Outer body: M.S
Rate of heating : 120ºC / hour and 50ºC / hour.
Dial gauge : Range upto 10mm with resolution of
0.01mm.
Weights : A set of weights ranging from 5grams
to 2000grams would be supplied for incremental
loads.
Paint : Powder coated.
Power : 230 Volts, 50Hz, single phase. |
 |
|
|
