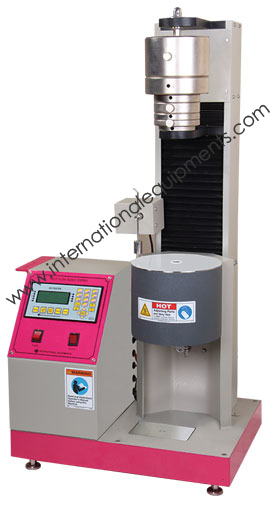

Melt Flow Index Tester



Melt Flow Index Tester as per ASTM D – 1238 to measure the flow rates of thermoplastics by extrusion plastometer. This test indicates the uniformity of the flow rate of the polymer.

Temperature controller : Micro processor based PID controller with temperature range from ambient to 400ºC, resolution of 0.1ºC and accuracy of + 0.1ºC.
Timer : Digital presettable with a range up to 59 minutes, 59 seconds.
Sample cutting : Auto [Motorized]
Weights : 1.2 kg, 2.16 kg, 3.8 kg, 5 kg & 21.6 kg.
Accessories : Standard accessories*.
Paint : Powder coated.
Power : 230 Volts, 50 Hz, single phase.

Request A Quote Download Catalogue



(KAYJAY/1994/L)

Melt Flow Index Tester


Temperature controller :
Micro processor based PID controller with temperature range from ambient to 375ºC, resolution of 0.1ºC and accuracy of + 0.1ºC.
Timer : Digital presettable with a range up to 59 minutes, 59 seconds and having buzzer output.
Sample cutting : Manual.
Weights: 1.2 kg, 2.16 kg, 3.8 kg, 5 kg & 21.6 kg.
Accessories : Standard accessories*.
Paint : Powder coated.
Power : 230 Volts, 50 Hz, single phase

Request A Quote Download Catalogue



(KAYJAY/2005/CE)

Melt Flow Index Tester

Temperature controller : Micro processor based auto tuned PID controller with temperature range from ambient to 400ºC, resolution of 0.1ºC and accuracy of + 0.1ºC.
Timer : Digital presettable with a range up to 999 seconds and having buzzer output.
Sample cutting : Manual.
Weights : 2.16 kg & 5 kg.
Accessories : Standard accessories*.
Paint : Powder coated.
Power : 230 Volts, 50 Hz, single phase.

Request A Quote
